Product Introduction: Structural Features Hollow shaft (12) is directly connected to the roller through threads or flanges, and is the main rotating component; The sealing structure combines the structural characteristics of Q-type and D-type rotary joints, and adopts a balanced sealing design to make the working pressure almost equal to the pressure generated at both ends of the sealing ring (8), effectively reducing the wear of the sealing load on the sealing end face and extending the service life. The rolling bearing (10) supports the hollow shaft, greatly reducing the rotational torque and making it flexible to operate. In addition, it is small in size and light in weight, making it suitable for higher speeds.

structural characteristics
The hollow shaft (12) is directly connected to the roller through threads or flanges and is the main rotating component; The sealing structure combines the structural characteristics of Q-type and D-type rotary joints, and adopts a balanced sealing design, which makes the working pressure almost equal to the pressure generated at both ends of the sealing ring (8), effectively reducing the wear of the sealing load on the sealing end face and extending the service life. The support of the hollow shaft by the rolling bearing (10) greatly reduces the rotational torque, making it flexible to operate. In addition, it is small in size and light in weight, making it suitable for higher speeds.

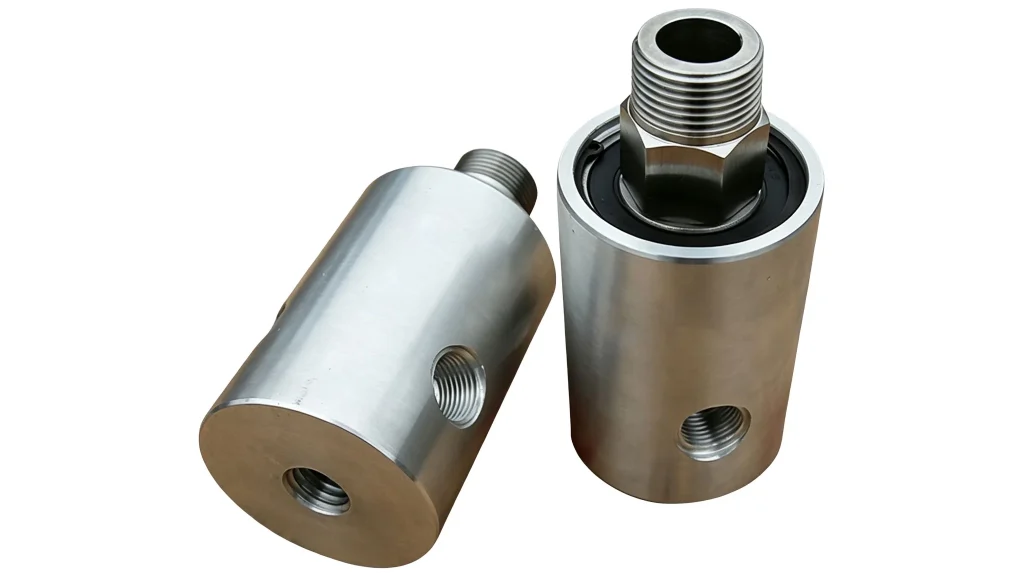

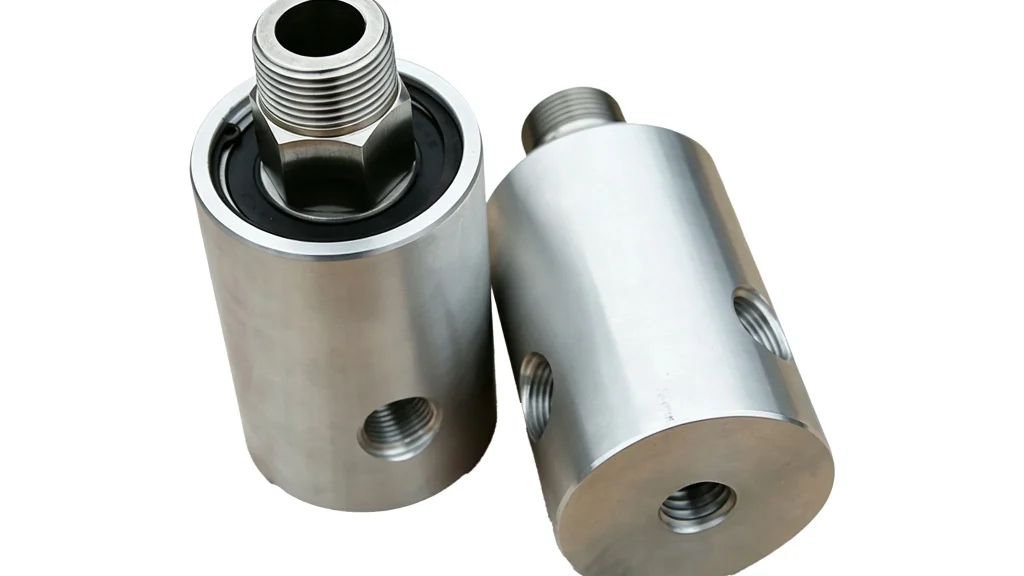

Name: Rotary Joint Model: SH-F/SH-G/SH-GF
Product Parameters:
Applicable maximum speed of 1000r/min
Temperature: 100c Pressure: 1.0MPa Medium: Industrial water, industrial oil
Note: The usage limit values vary with different speeds, temperatures, and pressures. Under special circumstances, please contact Teng Zhonglian. The ordering information should include the following aspects: 1. Complete number (see back)‐ — Can identify the type, structure, specifications, and dimensions of rotary joints.  SH-G— — Alloy shell structure, bi-directional internal pipe fixed threaded connection type;  SH-GF— — Alloy shell structure, two-way inner pipe fixed flange connection type;  SH-X— — Alloy shell structure. Two way flow inner tube rotating type. 2. If ordering a threaded rotary joint, please indicate the left and right directions of the hollow shaft thread. 3. The use of rotary joints must be accompanied by metal hoses. 4. Please indicate when the temperature of the medium exceeds 120 ℃ for steam.
