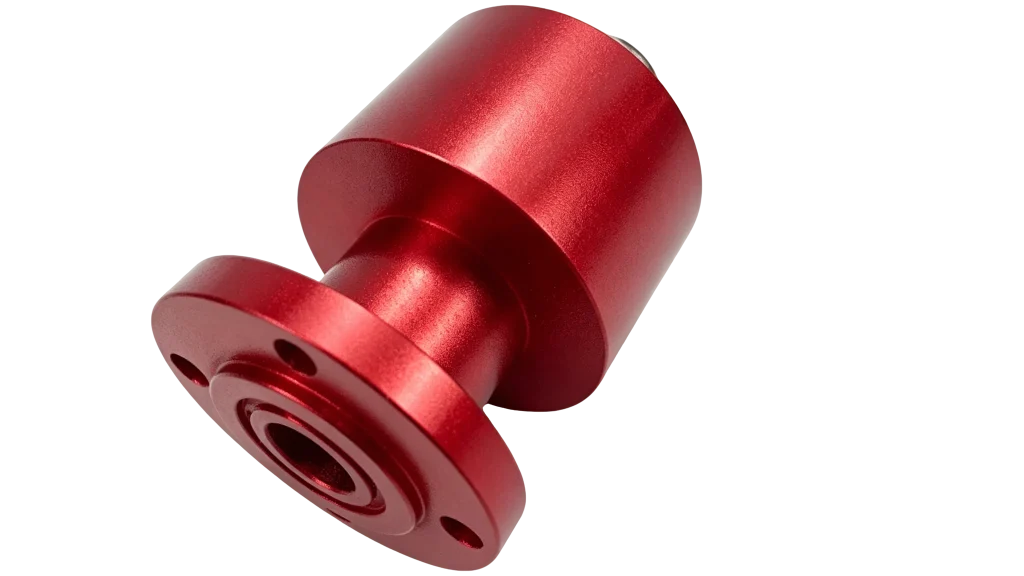

Construction of Thermal Oil Rotary Joint

Product Features:
Anti spherical sealing design, with a strength four times that of ordinary spherical sealing rings;
Supported by double cylindrical oil-free bearings, the rotation is smoother and can be used for larger vibrations
In the equipment;
Built in anti impurity structure, with a long lifespan;
High temperature resistant alloy spring, antimony impregnated spherical sealing ring, can be used for a long time
High temperature thermal oil working conditions;
No maintenance required, no need to add lubricating oil, easy to repair;

Technical Specifications:
Maximum speed: 450 r/min
Working temperature: -30 to+355 ℃
Maximum pressure: 3.5Mpa
Applicable medium: Thermal oil
It should be avoided to work under several maximum limit conditions at the same time. For detailed technical parameters, refer to the diameter, tachometer, or consult with the Aike Sealing Technology Department to ensure safe operation;
Important Note:
1. The inlet and outlet pipelines must be connected using metal hoses;
2. The installed rotary joint must be able to move back and forth freely and swing left and right
Move at a certain angle and strictly prohibit fixing the rotating joint firmly;
3. The bi-directional fixed inner pipe threads are all right-handed, even if the outer pipe “K” is a flange or
Left threaded connection;

When evaluating modern industrial process heating solutions, many manufacturing facilities rely on thermal oil systems to safely and effectively manage high temperature heat transfer fluids. If you look at the ongoing debate of steam boilers vs thermal fluid heaters, the latter frequently wins out. This is largely due to low pressure high temperature heating advantages, which allow plants to achieve precise temperature control for industrial processes without the heavy, expensive, and heavily regulated equipment required for pressurized steam.

The Role and Construction of Thermal Oil Rotary Joint Assemblies

In applications where heat must be transferred to moving machinery—such as rotating cylinders in paper mills, textiles, or plastics—the construction of thermal oil rotary joint assemblies is critical. These precision-engineered devices connect stationary supply pipes to rotating drums, allowing hot fluid to flow in and out without leaking.

Because they endure intense mechanical stress and extreme temperatures, these joints are constructed using robust carbon-graphite seals, high-grade ball bearings, and stainless-steel housings. A well-constructed rotary joint minimizes friction and wear, directly supporting the overall energy efficiency of fluid phase heating by keeping thermal energy perfectly contained within the rotating equipment.

Essential System Components and Infrastructure

A rotary joint is just one part of the puzzle. A reliable heating network relies on a synergy of high-quality closed-loop industrial heating circuit components. To build and maintain a safe infrastructure, facility managers should focus on:

• Piping and Layout: Adhering to hot oil piping installation best practices—such as utilizing welded joints rather than threaded connections—drastically reduces the risk of leaks.
• Expansion Management: Fluid expands as it heats. Designing efficient expansion tank systems provides the necessary volume buffer and protects the system from dangerous overpressurization.
• Pump Integrity: Proactively maintaining pump seals in hot oil circuits ensures uninterrupted flow and prevents highly flammable fluid from escaping the closed loop.

Fluid Selection, Maintenance, and Safety

The lifeblood of your operation is the oil itself. Plant operators frequently weigh the benefits of synthetic vs mineral heat transfer oils. While mineral oils are highly cost-effective for standard operations, synthetic fluids generally offer superior thermal stability for extreme-temperature applications.

Understanding your fluid’s limits is a matter of safety. Operators must always know what is the flash point of heat transfer oil currently in use. Operating below this critical temperature threshold is a fundamental step in mitigating fire risks in organic fluid heaters.

Furthermore, avoiding system downtime means understanding common heat transfer fluid degradation causes, primarily thermal cracking and oxidation. If you are wondering how to prevent thermal oil oxidation, the most actionable solution is to blanket your expansion tank with an inert gas, like nitrogen. This simple step displaces oxygen, preserving the fluid’s lifespan and preventing the formation of corrosive sludge.

Final Takeaway

Optimizing a thermal fluid network requires attention to both mechanical design—especially the rugged construction of your rotary joints—and proactive fluid management. By combining robust engineering with smart maintenance practices, industrial facilities can ensure safe, efficient, and highly controllable process heating for years to come.
