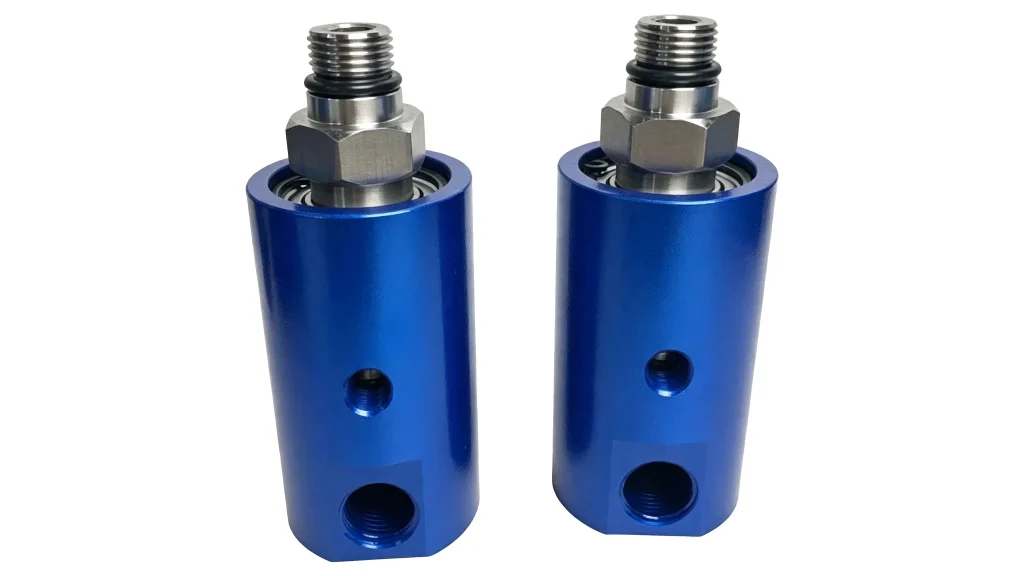

Centrifugal pump high-speed swivel union

Centrifugal pump high-speed rotary joint, Centrifugal pump high-speed rotary joints, Centrifugal pump high-speed rotary union, Centrifugal pump high-speed rotary unions, Centrifugal pump high-speed swivel union, Centrifugal pump high-speed swivel joint

Structural characteristics and technical principles
Balanced mechanical seal: using a multi spring or single spring compensation mechanism to balance the sealing surface pressure, reduce wear and heat generation, and adapt to the centrifugal force generated by high-speed rotation.
Precision bearing support: Equipped with two sets of high-precision angular contact ball bearings or self-aligning roller bearings to ensure rotor rigidity and suppress vibration. Some bearingless designs utilize fluid dynamic self support.
Cooling and lubrication: The shell is equipped with a permanent cooling chamber or oil nozzle, which uses the medium itself or external circulation to remove the frictional heat of the sealing surface and prevent high-temperature carbonization.
Anti leakage design: The dynamic and static rings form a micrometer level liquid film seal, which is combined with an O-ring secondary seal to prevent medium leakage or air inhalation (anti air binding). ‌‌

Core performance parameters
Rated speed: Conventional high-speed type ≥ 3000rpm, ultra high speed type can reach 20000-50000rpm; If the speed is too high, it is necessary to match precision bearings and dynamic balance levels.
Working pressure: General type 20-40bar, high-pressure type can reach 70-140bar (about 7-14MPa), and some industrial grade products support 35MPa.
Applicable temperature: Standard type -20 ℃~120 ℃, high temperature type can reach up to 180 ℃ (requires sealing with cooling chamber or corrugated tube).
Media compatibility: Suitable for coolant, heat transfer oil, hydraulic oil, air, and weakly corrosive fluids; Highly corrosive/solid containing media require customized materials (such as Hastelloy, PTFE seals).
Leakage standard: The dynamic leakage rate is usually required to be<0.1ml/min, and high-end scenarios pursue “zero leakage” (requiring dual verification of airtightness and dynamic testing). ‌‌

Efficient liquid transfer through high-velocity rotating shafts requires unmatched precision engineering. At the heart of this complex process is the highly engineered centrifugal pump high-speed swivel union. This critical component safely maintains secure fluid connections under extreme operational stress, ensuring seamless output across demanding industrial applications. Whether in chemical processing or heavy manufacturing, relying on robust rotational connections is the key to minimizing product loss and maximizing continuous throughput.

Selecting the Right Centrifugal Pump Parts

When upgrading core centrifugal pump parts, sourcing premium centrifugal pump accessories is absolutely vital for long-term stability. Knowing exactly how to select high-speed fluid couplings involves understanding complex multi-passage rotary joint design principles, which allow systems to handle simultaneous cooling and heating media routing. Customizing these intricate components ensures they meet precise operational demands.

During system design, engineers frequently evaluate mechanical seals vs rotary joints for fluid transfer. While standard mechanical seals suffice for basic setups, a specialized centrifugal pump swivel union offers vastly superior adaptability for dynamic fluid routing. Furthermore, selecting the best materials for high temperature rotary unions—like tungsten carbide or specialized thermal alloys—guarantees mechanical reliability, even when machinery operates near the absolute high speed rotary union RPM limits.

Flow Dynamics and High-Speed Performance

Mastering centrifugal pump flow dynamics and rotary interfaces is essential to maximize overall system stability. Operators must carefully account for the effect of centrifugal force on swivel union seals. Unmanaged rotational force can easily cause seal face distortion and catastrophic premature wear.

To perfectly optimize equipment performance, operators should prioritize low friction torque swivel union benefits. Lower internal friction directly translates to reduced mechanical strain, decreased energy consumption, and minimized heat generation.

• Vibration Control: Effectively balancing rotating pressure joints for vibration control prevents destructive shaft misalignment and extends bearing life during rapid operations.
• Thermal Regulation: In heavy-duty industrial cooling system rotary union applications, precise flow regulation prevents heavy machinery from dangerous overheating during peak production cycles.

Proactive Maintenance and Troubleshooting

Implementing consistent rotary union maintenance for high RPM pumps serves as the strongest defense against expensive downtime. Successfully preventing mechanical seal failure in centrifugal systems requires strict inspection schedules and immediate attention to minor operational faults.

• Strategic Lubrication: Properly lubricating high-speed swivel joints for longevity significantly reduces internal friction and protects critical bearings from seizing under load.
• Fixing Leaks: When troubleshooting leaks in rotating fluid connections, always inspect for worn O-rings, seal face scoring, or abrasive media damage. Deploying automated pressure sensors can quickly detect hidden pressure drops.

A well-integrated centrifugal pump high-speed swivel union dramatically maximizes efficiency. By prioritizing top-tier materials and proactive maintenance, facilities ensure their systems safely handle extreme velocities. Routine performance audits will ultimately safeguard your investment and keep your industrial processes running at peak capacity without compromising fluid integrity.
